Introduction:
Safety in hazardous areas is non-negotiable. Electrical equipment operating in explosive atmospheres must be designed to prevent ignition of flammable gases, vapors, or dust. Two of the most common protection methods are Explosion Proof and Intrinsically Safe.
Although both serve the same purpose-ensuring safety-they work in fundamentally different ways. If you’ve ever wondered about the difference between Explosion Proof vs Intrinsically Safe, this article explains everything in detail.
We’ll cover:
-
What does Explosion Proof mean?
-
What does Intrinsically Safe mean?
-
Key differences
-
Advantages and disadvantages of both methods
-
Applications in industries
-
Standards and certifications
-
Cost and maintenance factors
-
Which method is right for your project
What is Explosion Proof?
The term Explosion Proof refers to electrical equipment designed to withstand an internal explosion and prevent it from igniting the external hazardous atmosphere.
Contrary to what some believe, explosion proof does not mean the device can never explode. It means that if an internal ignition occurs, the enclosure can contain it and prevent flames or sparks from escaping.
How Explosion Proof Equipment Works
Explosion proof devices feature:
-
Heavy-duty enclosures: Built with robust materials like cast aluminum or stainless steel to contain internal blasts.
-
Flame paths: Special pathways allow gases to escape but cool them down below ignition temperature before reaching the outside atmosphere.
This design is critical for environments classified as Class I, Division 1 or Zone 1, where explosive gases or vapors are present during normal operations.
Explosion Proof Advantages
-
Handles high power equipment like motors, pumps, lighting systems.
-
Extremely durable for harsh environments.
-
Approved for hazardous areas where ignition risk is high.
Explosion Proof Disadvantages
-
Heavy and bulky enclosures increase installation complexity.
-
Expensive compared to intrinsically safe systems.
-
Requires rigid conduits and sealing fittings during installation.
What is Intrinsically Safe?
Intrinsically Safe (IS) is a protection concept that prevents explosions by limiting the energy in electrical circuits so it cannot cause ignition-even if a fault occurs.
Instead of containing an explosion, intrinsically safe systems avoid it completely by reducing voltage and current to levels below ignition energy.
How Intrinsically Safe Equipment Works
-
Uses energy barriers or isolators to keep circuits safe.
-
Ideal for low-power devices like transmitters, sensors, and handheld equipment.
-
No heavy enclosures required, making it lightweight and portable.
Intrinsically Safe Advantages
-
Safer and easier maintenance-can often work without disconnecting power.
-
Lower cost compared to explosion proof systems.
-
Perfect for confined spaces and portable equipment.
Intrinsically Safe Disadvantages
-
Cannot handle high power loads.
-
Limited to instrumentation and small devices.
-
Requires specialized design for energy limitation.

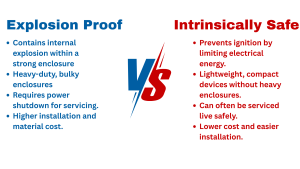

Explosion Proof vs Intrinsically Safe: Key Differences
Understanding these differences helps in making the right choice for your application:
| Feature | Explosion Proof | Intrinsically Safe |
|---|---|---|
| Principle | Contains internal explosions | Prevents ignition by limiting energy |
| Design | Heavy enclosure | Energy-limited circuits |
| Weight | Bulky and heavy | Lightweight and portable |
| Maintenance | Requires shutdown and permits | Can often be serviced live |
| Cost | Higher | Lower |
| Applications | Motors, lighting, control panels | Sensors, transmitters, handheld devices |
Applications in Industry
Where to Use Explosion Proof Equipment?
-
Oil and gas facilities (pumps, motors)
-
Chemical plants (control panels)
-
Refineries (lighting systems)
Where to Use Intrinsically Safe Equipment?
-
Portable gas detectors
-
Temperature and pressure transmitters
-
Mining communication devices
Cost and Maintenance Considerations
cost of Explosion Proof vs Intrinsically Safe Devices
-
Explosion Proof: Higher upfront cost due to heavy enclosures and strict installation requirements. Maintenance requires de-energization, adding to downtime.
-
Intrinsically Safe: Lower cost, easier installation, and less maintenance complexity.
Standards and Certifications
Compliance is mandatory for hazardous environments:
-
Explosion Proof: NEC Article 500, IECEx, ATEX
-
Intrinsically Safe: IEC 60079-11, ATEX Zone 0 approvals
Which One Should You Choose?
-
Use Explosion Proof vs Intrinsically Safe for high-power equipment like motors and lighting.
-
Use Intrinsically Safe for low-power control devices and sensors.
Tip: For most instrumentation applications, intrinsically safe is more economical and easier to maintain.
FAQs: Explosion Proof vs Intrinsically Safe
1. What is the main difference between explosion proof and intrinsically safe?
Explosion proof contains explosions inside the device, while intrinsically safe prevents ignition by limiting energy.
2. Which is safer: Explosion Proof or Intrinsically Safe?
Both are safe when properly designed and certified, but intrinsically safe is generally considered safer for maintenance.
3. Can I use intrinsically safe devices in Zone 0?
Yes, intrinsically safe systems are suitable for Zone 0, where flammable gases are present continuously.
4. Is explosion proof equipment more expensive?
Yes, due to heavy-duty enclosures and complex installation requirements.
5. Can explosion proof devices be portable?
Generally no; they are large and heavy, making them unsuitable for portable use.
Industrial Applications & Real-World Use Cases
In hazardous industrial environments such as oil refineries, petrochemical plants, offshore platforms, and mining operations, reliable communication is a critical safety requirement. Workers in Zone 1 and Zone 21 classified areas face constant exposure to flammable gases, vapors, and combustible dust. Any electronic device used must be intrinsically safe to prevent ignition.
Oil & Gas Operations
Field engineers on drilling rigs, well pads, and production platforms rely on ATEX certified devices for work order management, real-time communication with control rooms, digital permit-to-work systems, and photographic documentation. Our devices are deployed across ADNOC, Saudi Aramco, KOC, KNPC, ONGC, Petrobras, and Shell facilities worldwide.
Refinery & Petrochemical Safety
Process safety management requires continuous communication between operators, maintenance technicians, and HSE personnel. ATEX phones enable instant push-to-talk during turnarounds, emergency responses, and inspection rounds. Explosion-proof tablets allow viewing P&IDs and digital checklists in the field.
Offshore Platform Operations
Offshore environments present salt spray corrosion, extreme weather, and limited charging infrastructure. Our IP68-rated devices withstand these conditions while maintaining Zone 1 certification for crane coordination, emergency mustering, and helicopter manifesting.
Safety Compliance Standards
- ATEX Directive 2014/34/EU — European explosive atmospheres standard
- Ex ia IIC T4 Gb — Zone 1 intrinsic safety for gas groups
- Ex ia IIIC T135°C Db — Zone 21 dust protection
- IP68 — Dust and water protection
